LIGHTWEIGHT TACTICAL BALLISTIC HELMET

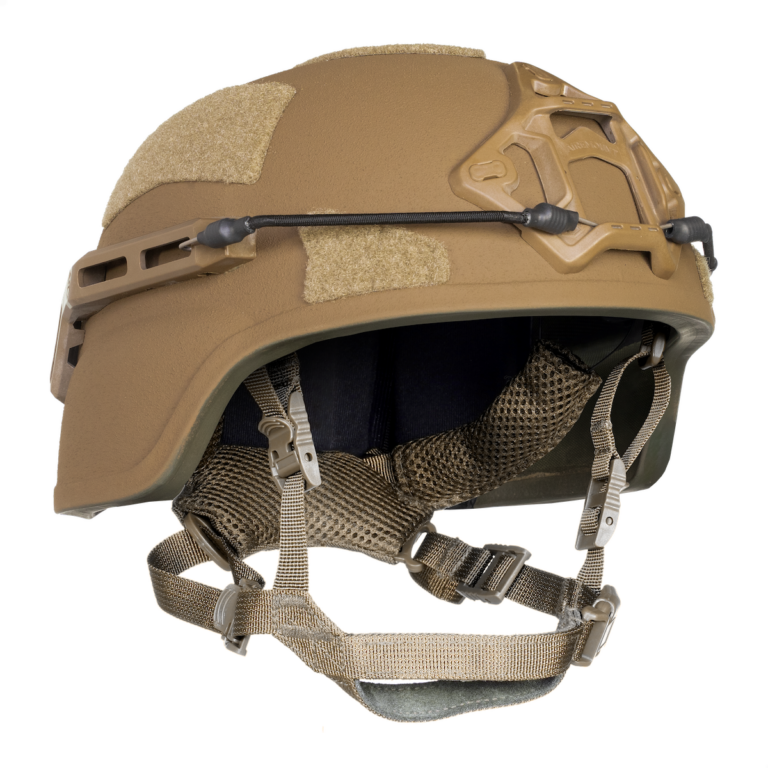

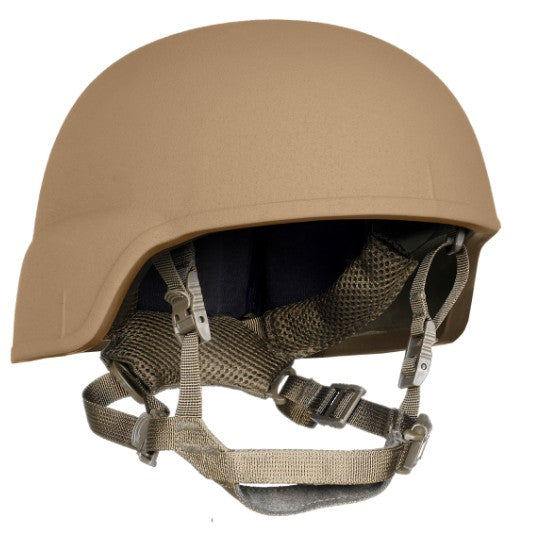

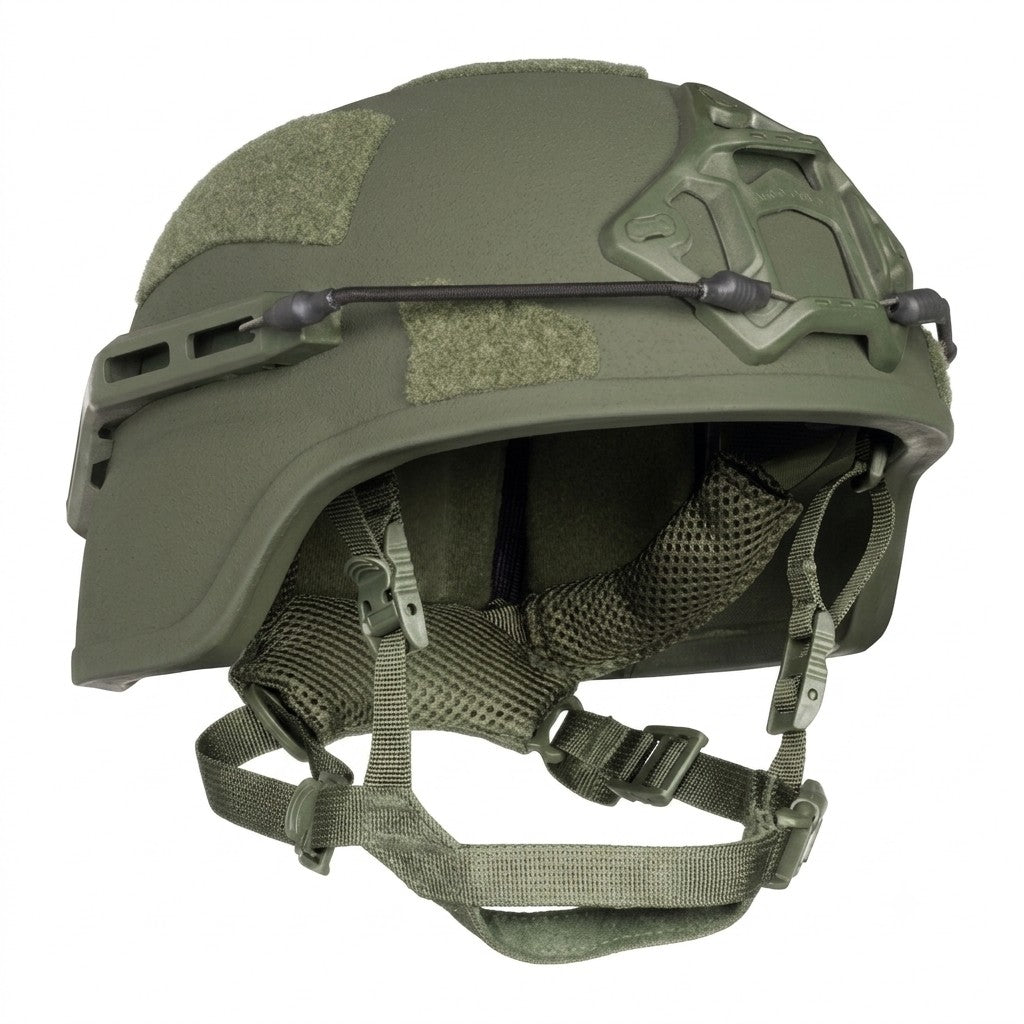

The ArmorSource AS-200 Ballistic Helmet is the most affordable ACH/MICH Shape NIJ Level IIIA protection helmet on the market today.
Offering proven fragmentation protection capabilities matched by our dedication to trim unwanted weight, the AS-200 is adaptable for use with all ArmorSource accessories, rails and shrouds and is relied on today by the U.S. Military and other military organizations worldwide.
FEATURES
Provides INCREASED PROTECTION AGAINST HANDGUN BULLETS: (9mm and .44 Magnum)
UNIVERSAL SHAPE used and accepted by most military and law enforcement organizations worldwide
Available in BOLTED AND BOLTLESS versions
Proudly MADE IN THE USA
SHAPE/DESIGN: U.S. Army ACH Geometry
SHELL CONSTRUCTION: Proprietary blend of Aramid and Composite Materials
BALLISTIC PROTECTION: NIJ level IIIA 0108.01/0106.01
FRAGMENT PROTECTION: 17 grain V50 > 2130 f/s (650 m/s) in accordance with MIL-STD-662F
9MM BFD/TRAUMA: Up to 1" at NIJ IIIA velocity in average
CERTIFICATION: From an NIJ certified laboratory
AVAILABLE HEAD SIZES: X-Small / Small / Medium / Large / X-Large / XX-Large
AVAILABLE SHELL SIZES: Small / Medium / Large / X-Large
EXTREME TESTING CONDITIONS: Performs under temperature between 160 °F (71°C) and -60°F (-51°C); Performs after 3 hours sea water immersion
CONFIGURATION: 100% Boltless (Durability Verified)
USE: Law Enforcement; Patrol Units
SHELL INFORMATION:
SHELL THICKNESS 0.4” (±0.1") / 10 mm (±2.5mm)
FINISHED SHELL NOMINAL WEIGHT* Medium 1.22 kg (2.7 lbs); Large 1.27 kg (2.8 lbs); X-Large 1.37 kg (3 lbs)
SYSTEM INFORMATION:
FINISHED HELMET NOMINAL WEIGHT ** Medium 1.4 kg (3.1 lbs); Large 1.45 kg (3.2 lbs); X-Large 1.55 kg (3.4 lbs)

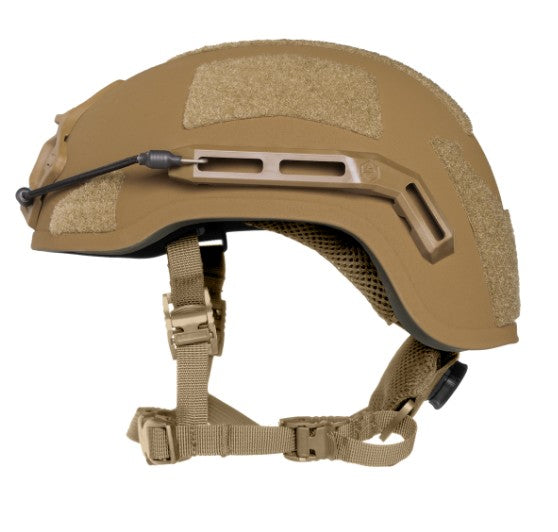

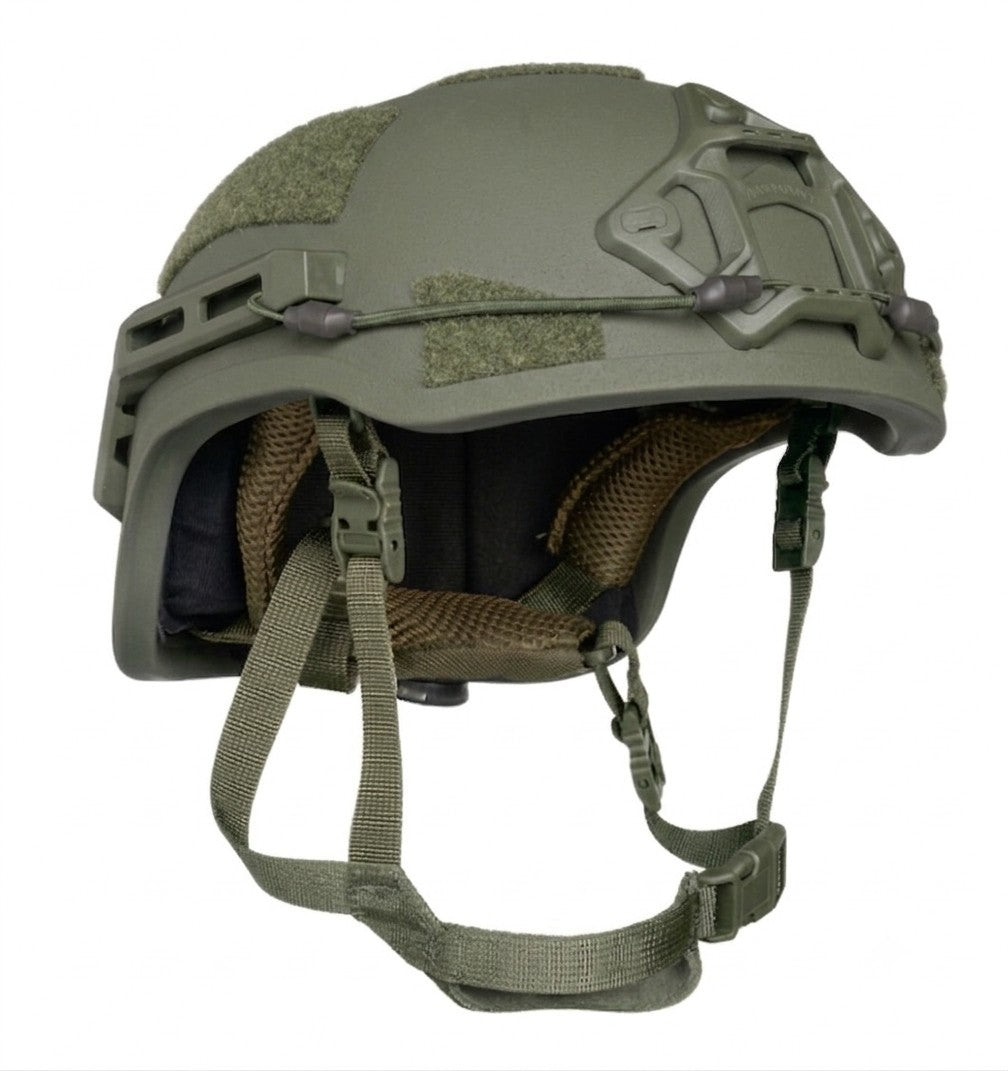

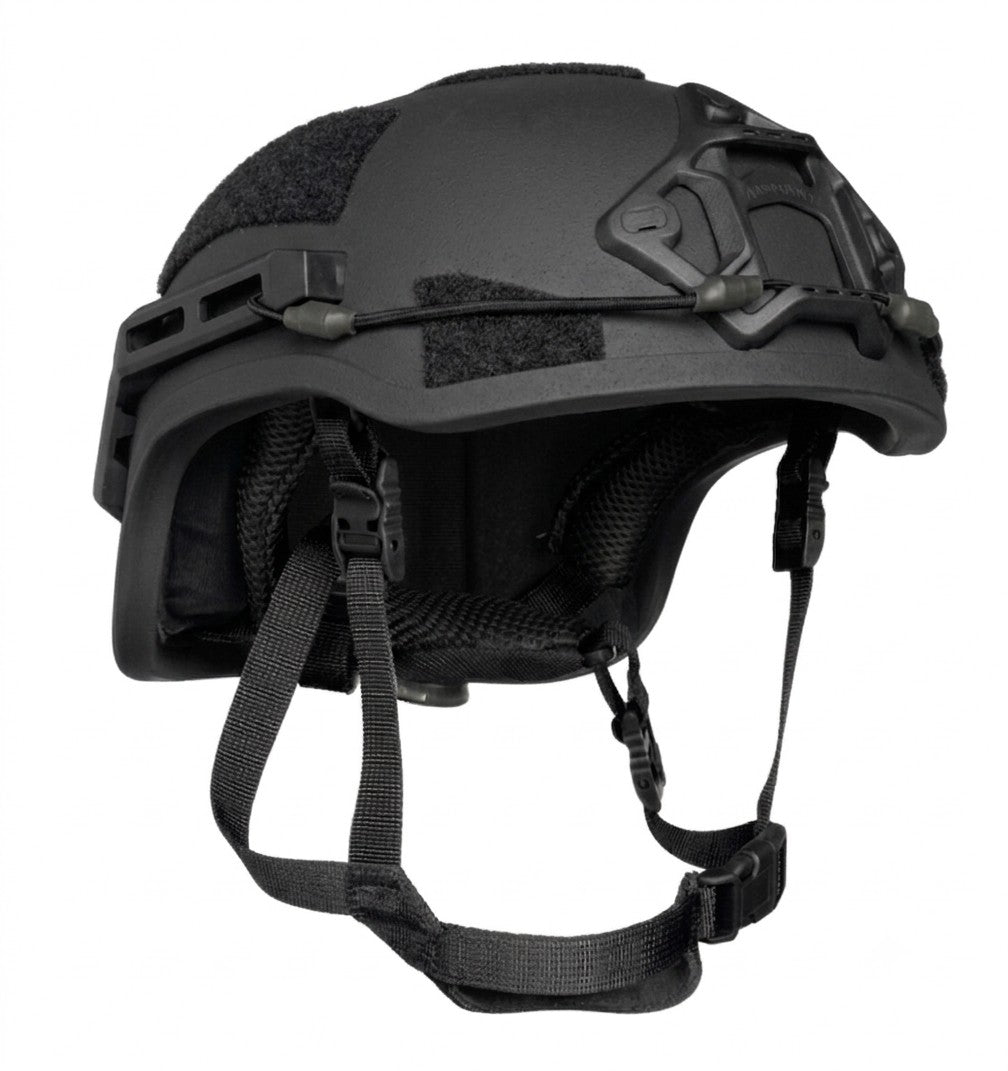

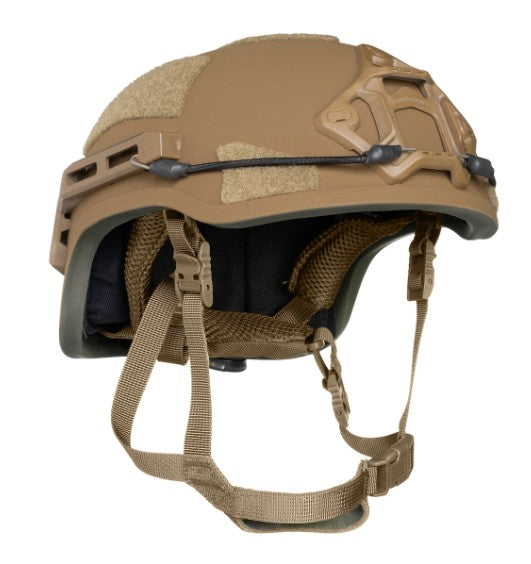

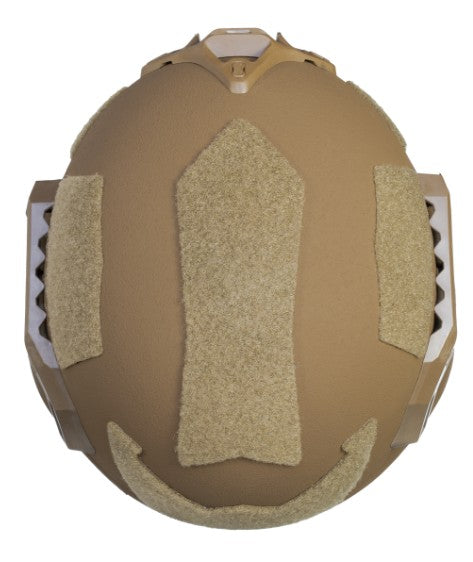

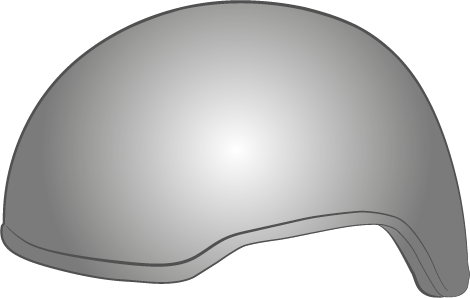

FULLY LOADED HIGH-CUT NOMINAL WEIGHT *** Medium 1.45 kg (3.2 lbs); Large 1.48 kg (3.3 lbs); X-Large 1.58 kg (3.5 lbs)

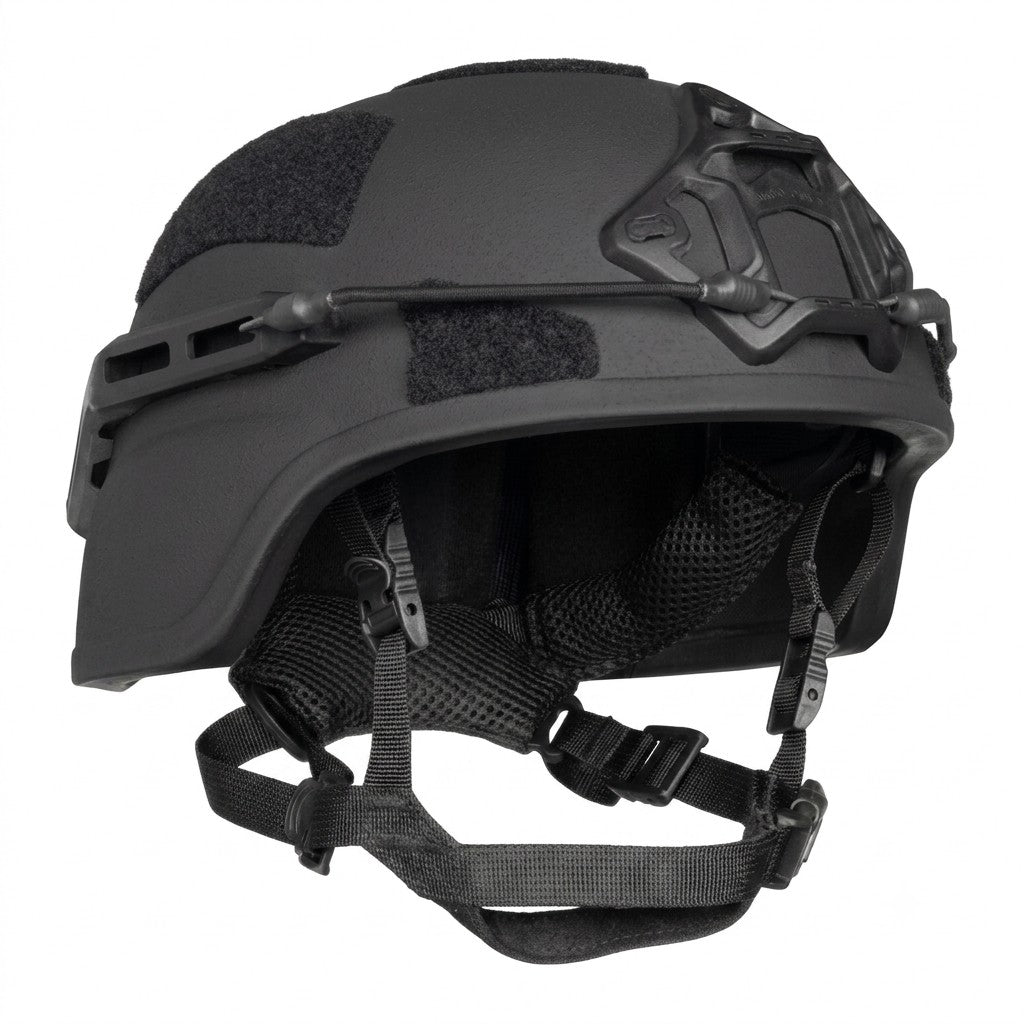

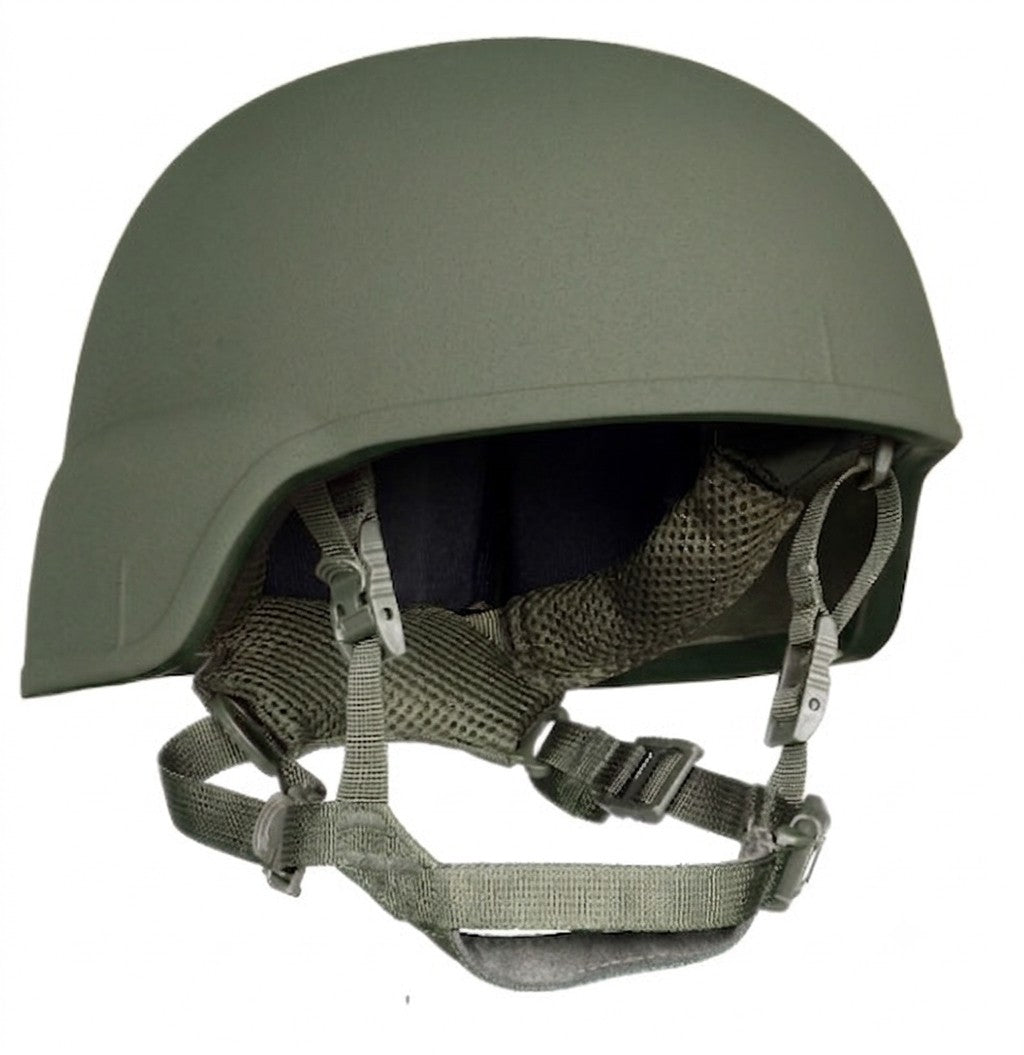

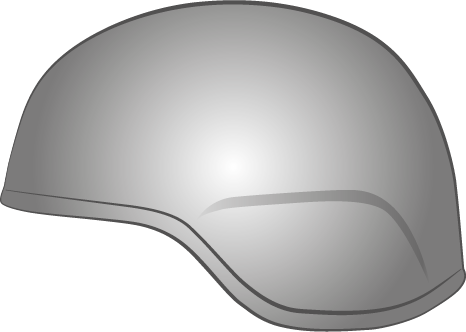

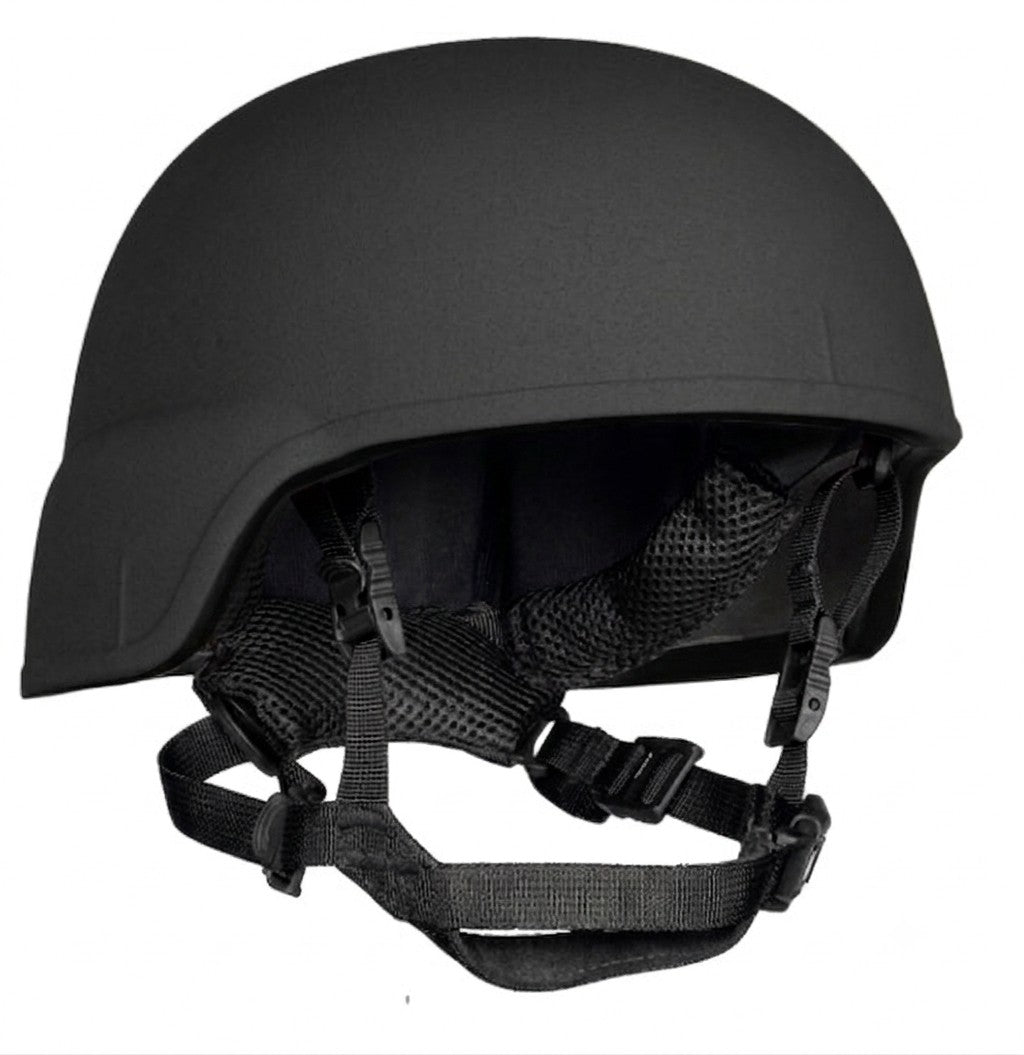

- Regular-cut shell

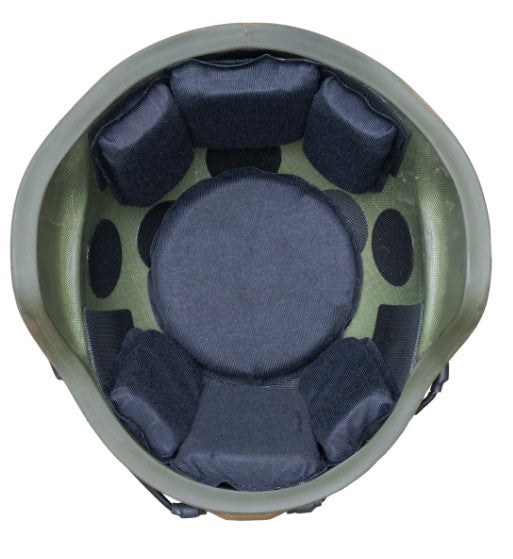

- ** A Regular-cut helmet installed with retention and suspension systems
- *** Special Command configuration: the complete kit, with ASR side-rails, NVG Shroud and Operational Loop System


![]()
![]()
