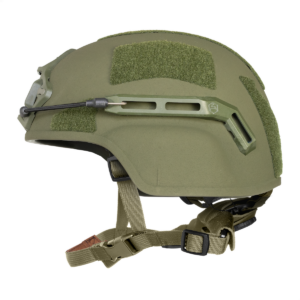

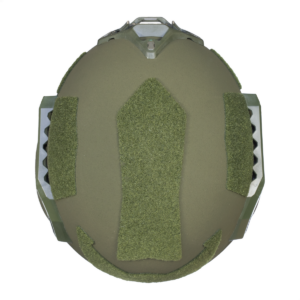

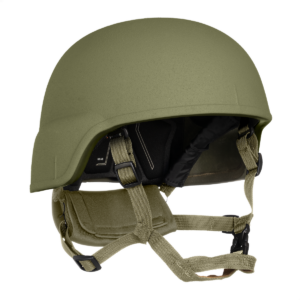

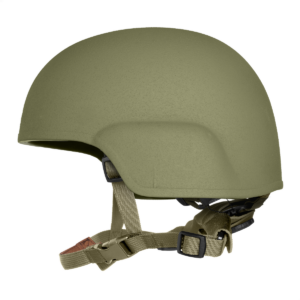

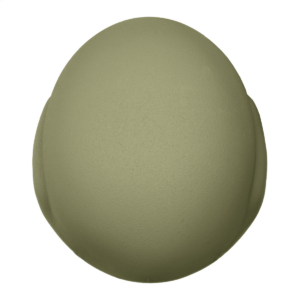

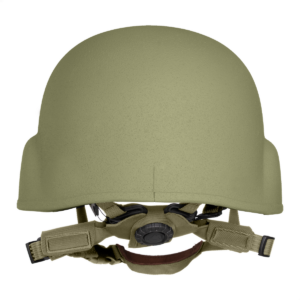

ArmorSource AIRE II Ballistic Helmet

U.S. Army Next Generation Advanced Combat Helmet. The Lightest in the Field.

Proudly introducing the next generation of ballistic head protection. Previously named 'AS-501 Gen II', the ArmorSource 'Aire II' Helmet solution is the lightest version of the U.S. Army Advanced Combat Helmet (ACH / LWACH) on the market.

Designed to minimize weight burden, the Aire II has effectively reduced the weight of the traditional ACH helmet by more than 30% and that of LW-ACH helmets by more than 15%. All while exceeding the ballistic protection of the Lightweight ACH category as a whole, thanks to our proprietary materials and superior development capabilities.

Features

Provides extremely high ballistic protection against a wide spectrum of small fragments as well as handgun projectiles

Extremely comfortable due to its light weight and flexible pad system

Utilizes industry leading ballistic technology

Utilizes the ACH/MICH shape used and accepted by the United States and other military organizations worldwide

Available in Bolted and Boltless Versions

Compatible with all ACH accessories and Devices

Proudly made in the USA

System Snapshot

Shape / Design: U.S. Army ACH Geometry

Shell Construction: Proprietary blend of Polyethylene and Composite Materials

Ballistic Protection: AR/PD 14-01; NIJ level IIIA

Fragments Protection:

-17 grain V50 > 2400 f/s (732 m/s) in accordance with AR/PD 14-01

-9mm BFD / Trauma

-9-mm RTP/BFD < 1" average

Environmental / Mechanical Protection / Design: U.S. Army AR/PD 14-01

CertificationFrom an NIJ certified laboratory

Available Head Sizes: X-Small / Small / Medium / Large / X-Large / XX-Large

Available Shell Sizes: Small / Medium / Large / X-Large

Extreme Testing Conditions

Performs under temperature between 160°F (71°C) and -60°F (-51°C);

Performs after 3 hours sea water immersion

Configurations: 100% Boltless (Durability Verified)

Use: Special Units; Military Troops

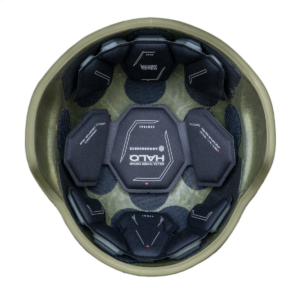

Shell Info

Shell Thickness: 0.3” (±0.1") / 6.5 mm (±2.5mm)

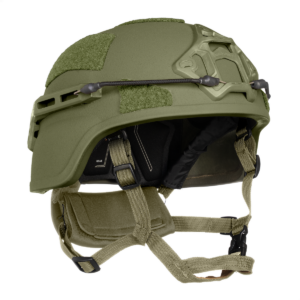

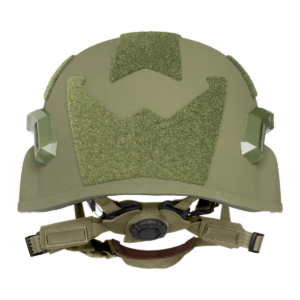

Regular cut: Finished Shell Nominal Weight*

Medium 838 g (1.85 lb); Large 880 g (1.94 lb); X-Large 965 g (2.13 lb)

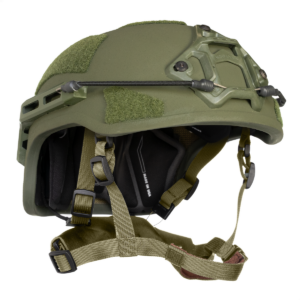

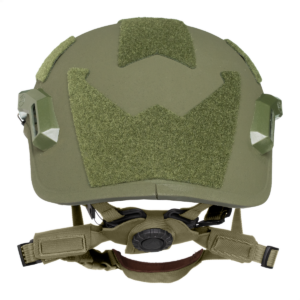

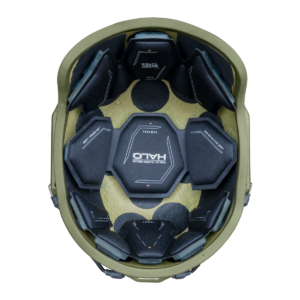

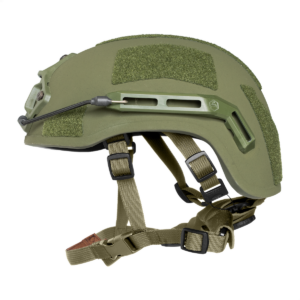

High-cut: Finished Shell Nominal Weight*

Medium 783 g (1.73 lb); Large 815 g (1.8 lb); X-Large 875 g (1.93 lb)

Nominal Surface Area - Regular cut

M - 1,037 cm² (161 in²); L - 1,081 cm² (168 in²); XL - 1,208 cm² (187 in²)

Nominal Area Density: 7.2 kg/m² (1.58 lbs/ft²)

* A finished shell, Painted and rubber-edged

System Info

Finished Helmet Regular cut Nominal Weight**

Medium 1,043 g (2.3 lb); Large 1,085 g (2.39 lb); X-Large 1.17 kg (2.58 lb)

Fully-Loaded High-Cut Nominal Weight***

Medium 1,158 kg (2.55 lbs); Large 1200 g (2.65 lb); X-Large 1,285 g (2.83 lb)

** A Regular cut helmet system installed with retention and suspension systems
*** A Special Command High-cut configuration: the complete kit, with ASR side-rails, NVG Shroud and Operational Loop System

System Capabilities Checklist

Ballistic Performance*

Accelerated Aging

NIJ Level IIIA

Fragmentation Protection

BFD / Trauma

Extended 17 Grain Velocity

U.S. Army ACH GEN II specs

Environmental Performance

Weatherometer resistance

US Army ACH Specs

Blunt Impact

Compression Resistance

Accelerated Aging

Flammability

Shock absorption *

Resistance for penetration *

Dynamic strength

Advanced Boltless Adhesive System

Impact Resistence

Field agent resistance

Impact Resistant

Compatibility & Add-ons*

Universal side-rails

NVG Mount

Operational Loop System

Counterweight

Camouflage Cover

Strap Extenders

Visor / Goggles

Communications / Ear Protection

Gas Mask

Carrying Bag

* In accordance with ArmorSource technical specifications and applicable standards
